Triconex 9760-210 Analog Input Termination Panel

Get more products details

Email

sales6@askplc.com

Mobile/WhatsApp

+86 17359287459 

Description

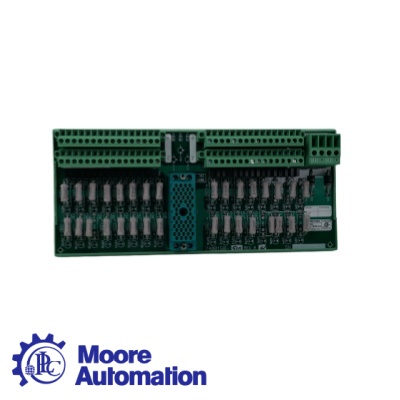

The Triconex 9760-210 is a 32-point current-input termination panel for compatible 0–5 VDC Tricon analog input modules. It provides field terminals for loop-powered transmitters and converts current signals into voltage through precision resistors. Two panels are required to terminate all 64 inputs of a compatible high-density module.

Triconex 9760-210 Analog Input Termination Panel

Product Type

Current-input termination panel

Number of Points

32

Compatible AI Range

0–5 VDC

Power Output Terminals

32 positive terminals

Current Input Terminals

32 negative terminals

Current-to-Voltage Conversion

Precision 250 Ω resistor per input

Positive-Terminal Protection

180 Ω series current-limiting resistor

Field Power

Redundant 24 VDC sources

Power Redundancy Method

Diode ORing

Panels per 64-Point Module

Two

Channel Labels Supplied

1–32 and 33–64

Key Features

Provides organized termination for 32 analog current-input loops.

Precision 250 Ω resistors convert 0–20 mA into 0–5 VDC.

Individual 180 Ω series resistors limit current at each positive power terminal.

Redundant 24 VDC power connections support dependable transmitter power.

Diode ORing isolates the two field-power sources.

Supplied label sets simplify identification when two panels serve one 64-point module.

Applications

Emergency shutdown systems

Process monitoring systems

Oil and gas production

Refineries and chemical plants

Power-generation facilities

Pressure, flow, temperature and level measurement loops
