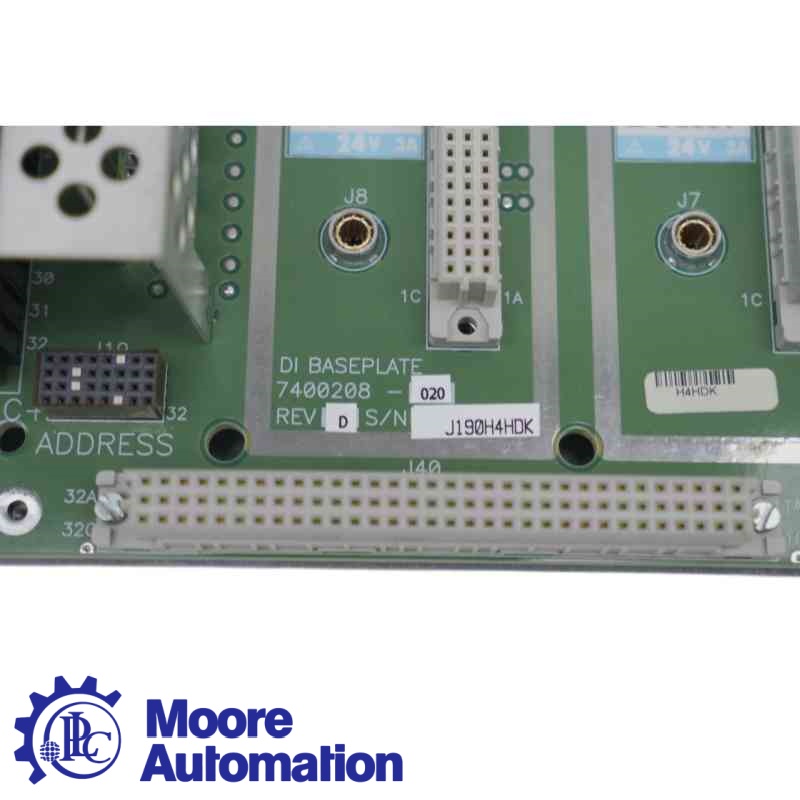

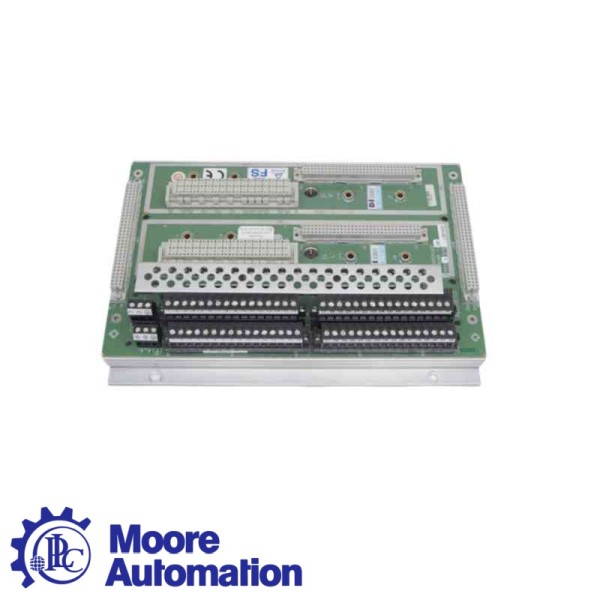

Triconex 7400208-020 Digital Input Baseplate
Item NO.: 3737683
Warranty: 1 year warranty
Condition : brand new in factory sealed box
Chat online: +86 17359287459 (whatsapp)
Email: sales6@askplc.com
Detail
- Product NameTriconex 7400208-020 Digital Input Baseplate
- Item NO.3737683
- Weight1.5400 kg = 3.3951 lb = 54.3219 oz
- CategoryOthers
- TagTRICONEX, 7400208-020, Digital Input Baseplate, Trident Model 2301
- BrandTriconex
- Creation Time2026-08-13
- Triconex 7400208-020 is a Model 2301 digital input baseplate for the Trident safety system, providing direct field termination for the associated 32-point, 24 V DC commoned digital input architecture.
|
TRIDENT SAFETY SYSTEM
TRICONEX 7400208-020
Digital Input Baseplate · Model 2301
|
PRODUCT CLASS
DIRECT
TERMINATION |
|
PART NUMBER
7400208-020
|
BASEPLATE MODEL
2301
|
DI ARCHITECTURE
32 Points
|
WEIGHT
1.54 kg
|
|
PRODUCT OVERVIEW |
The Triconex 7400208-020 is identified as a digital input baseplate for the Trident safety system. In the Trident hardware architecture, the Model 2301 baseplate provides direct field termination for the associated Model 3301 digital input module. Its layout supports a 32-point, 24 V DC commoned digital input arrangement and dual field-power connections. |
Technical Specification
| Manufacturer | Triconex / Schneider Electric |
| Part Number | 7400208-020 |
| Product Type | Digital Input Baseplate |
| Trident Baseplate Model | Model 2301 |
| Termination | Direct termination |
| Associated I/O Module | Model 3301 Digital Input Module |
| Associated Input Format | 32-point, 24 V DC, commoned |
| Field Power Arrangement | Dual field power: PS1 and PS2 |
| Field Short-to-Ground Fault Current | 130 mA typical; 200 mA maximum |
| Weight | 1.54 kg |
Connection Architecture
| 01 |
Direct field termination Terminal blocks provide the field-interface structure associated with the Trident digital input assembly. |
| 02 |
Dual field-power paths PS1 and PS2 connections are shown in the Trident baseplate architecture for field power distribution. |
| 03 |
32-point DI interface Designed for use with the associated Model 3301 32-point digital input module. |
| Application Fit | ||
|
Safety Shutdown
Digital field-input termination within Trident safety architectures.
|
Process Protection
Structured connection point for monitored on/off field signals.
|
System Maintenance
Suitable for like-for-like Trident baseplate replacement planning.
|
Compatibility Note
Verify the complete part number, revision, baseplate model, connector arrangement, and Trident system configuration before installation. System design, wiring, and maintenance should follow the applicable Triconex documentation.
