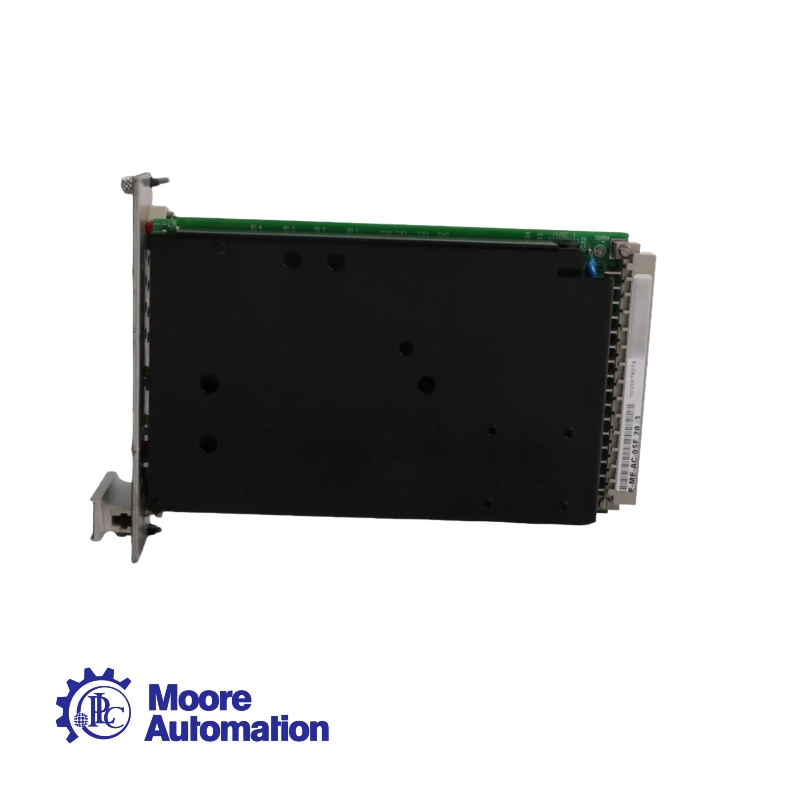

ATOS E-ME-AC-05F Euro-Card Amplifier
Warranty: 1 year warranty
Condition : brand new in factory sealed box
Chat online: +86 17359287459 (whatsapp)
Email: sales6@askplc.com
Detail
- Product NameATOS E-ME-AC-05F Euro-Card Amplifier
- Item NO.ATOS E-ME-AC-05F
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryOthers
- BrandOthers
- Creation Time2025-10-09
Our Company
With Moore Automation, the world’s automation inventory is one click away—keeping manufacturers running and downtime at zero. Wherever you operate, we cut losses that could cost millions.
▽▲
|
ATOS E-ME-AC-05F Details |
|
|
Power supply |
+24 VDC (rectified / filtered 21 – 33 V, ripple ≤ 10 % Vpp) |
|
Max power |
50 W |
|
Output current |
3.3 A (PWM square-wave) per solenoid; 2.5 A for Ex-proof coils |
|
Reference signal |
0 ÷ ±5 V or 4 ÷ 20 mA (jumper selectable) |
|
Input impedance |
> 50 kΩ (voltage), 250 Ω (current) |
|
Ramp time |
0 – 5 s adjustable (front potentiometer) |
|
Bias adjustment |
±0.2 V (dead-band compensation) |
|
Enable signal |
5 – 24 VDC on pin 18a (LED indicator) |
|
Operating temperature |
0 … +50 °C (storage –20 … +70 °C) |
|
Card format |
100 × 160 mm Euro-card (DIN 41494) |
|
Connector |
Male DIN 41612 / D 48-pin |
Product About:
The E-ME-AC-05F plug-in card drives two proportional solenoids in pressure or flow valves without transducers. Independent bias & ramp trims allow precise matching of valve hysteresis and acceleration ramps.
▽▲
|
