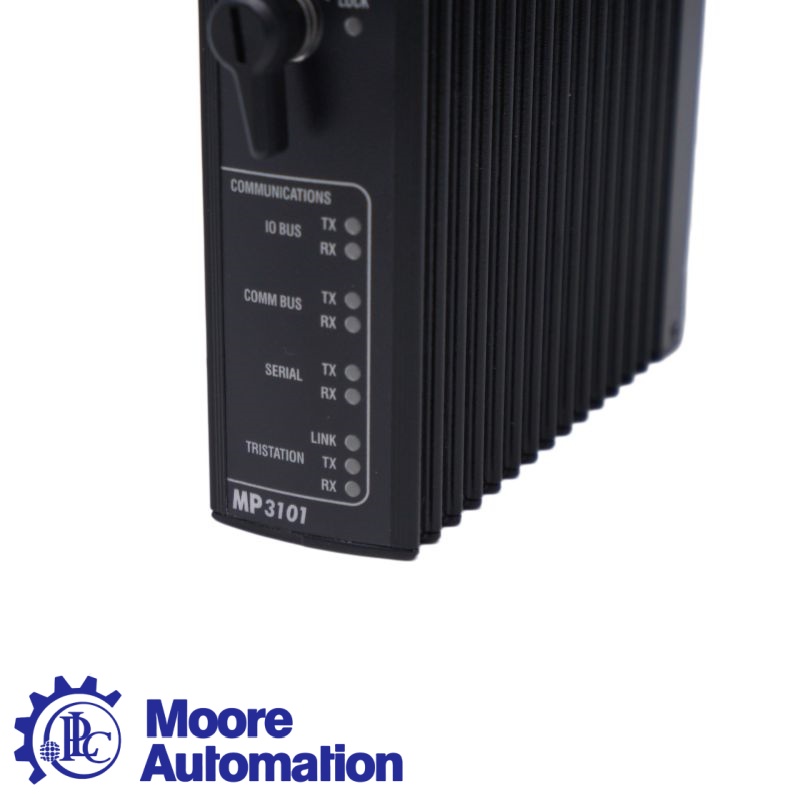

Triconex MP 3101 Main Processor Module
Warranty: 1 year warranty
Condition : brand new in factory sealed box
Chat online: +86 17359287459 (whatsapp)
Email: sales6@askplc.com
Detail
- Product NameTriconex MP 3101 Main Processor Module
- Item NO.3737450
- Weight1.6600 kg = 3.6597 lb = 58.5548 oz
- CategoryOthers
- TagTRICONEX, Main Processor Module, MP 3101
- BrandTriconex
- Creation Time2026-08-13
- The Triconex MP 3101 Main Processor Module is the central processing unit for the Trident TMR safety system. It executes control applications, performs input/output voting and diagnostics, and supports configurations with up to 14 I/O modules for reliable safety-critical process control.
|
If you would like to inquire about prices directly |
|
Email:sales6@askplc.com |
|
Mobile/WhatsApp:+86 17359287459 |
Triconex MP 3101 Main Processor Module
Product status: 1.New & Original 2.In Stock
Series: Tricon Safety System
Product Description
The Triconex MP 3101 is the main processor module for the Trident Triple Modular Redundant (TMR) safety system. Three MP modules are installed on the Model 2101 MP baseplate, with each processor operating as one independent system channel.
The MP 3101 executes the control application, processes and votes input/output data, manages system diagnostics, and communicates with the installed I/O modules. It supports up to 14 I/O modules in a standard Trident controller configuration.
Specifications
|
Product Type |
Main Processor Module |
|
Application Processor |
Motorola MPC860 |
|
Processor Architecture |
32-bit |
|
Processor Speed |
50 MHz |
|
Flash PROM |
6 MB, CRC-protected |
|
Application DRAM |
16 MB, byte-parity protected |
|
NVRAM |
8 KB, CRC-protected |
|
I/O Processor |
Motorola MPC860, 32-bit, 50 MHz |
|
I/O Processor DRAM |
16 MB, byte-parity protected |
|
Shared Memory |
128 KB, byte-parity protected |
|
TriBus Speed |
25 Mbps |
|
Diagnostic Bus |
2 Mbps HDLC |
|
Nominal Logic Voltage |
24 VDC |
|
Operating Voltage Range |
19.2–30 VDC, including up to 5% AC ripple |
|
Maximum Logic Power |
8 W |
|
Absolute Maximum Input Voltage |
33 VDC |
Application Areas
Emergency shutdown systems
Fire and gas detection systems
Burner management systems
Turbine and compressor protection
Process safety management
Oil and gas production facilities
Refineries and petrochemical plants
Chemical processing installations
Power-generation facilities
Other high-availability industrial control systems
Key Features
TMR processor architecture
Three MP 3101 modules operate as separate Trident channels, providing redundant processing for safety-critical control.
Control-application execution
Runs the configured safety and control program while coordinating real-time I/O processing.
Input and output voting
Compares data across the three channels to support fault-tolerant system operation.
Independent application and I/O processors
Separate Motorola MPC860 processors handle application execution and I/O management.
Protected memory
CRC and byte-parity protection help detect memory and data-integrity errors.
