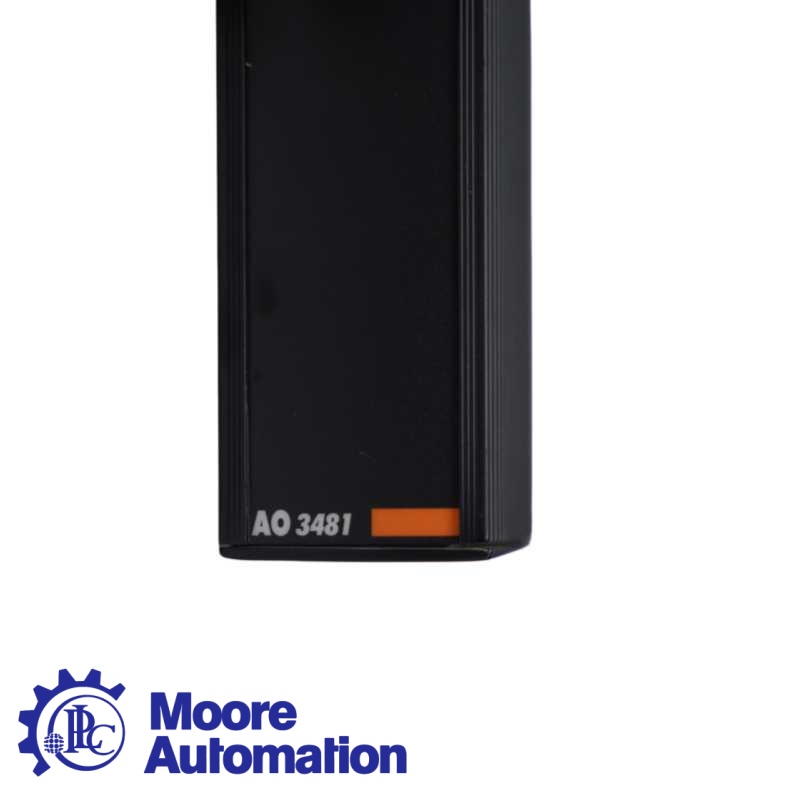

Triconex AO 3481 Analog Output Module
Item NO.: 3738083
Warranty: 1 year warranty
Condition : brand new in factory sealed box
Chat online: +86 17359287459 (whatsapp)
Email: sales6@askplc.com
Detail
- Product NameTriconex AO 3481 Analog Output Module
- Item NO.3738083
- Weight1.4500 kg = 3.1967 lb = 51.1472 oz
- CategoryOthers
- TagTRICONEX, Analog Output Module, Trident, AO 3481
- BrandTriconex
- Creation Time2026-08-14
- Triconex AO 3481 is a four-point TMR analog output module for Trident systems, delivering controlled 4–20 mA outputs with 12-bit resolution and forced-switch diagnostics.
|
TRIDENT OUTPUT NODE
ANALOG CONTROL / MODEL 3481
AO 3481
TMR Analog Output Module
|
LIVE OUTPUT MAP
4–20 mA
|
|
NODE // 01
PROFILE
|
The Triconex AO 3481 is a four-point TMR analog output module for the Trident platform. Its commoned-return, DC-coupled outputs deliver controlled 4–20 mA current signals for compatible field loops, while the module architecture provides resolution and diagnostic functions documented for the Trident system. |
NODE // 02 — PRIMARY DATA
|
OUTPUTS
04
Commoned-return
|
RANGE
4–20
mA controlled output
|
RESOLUTION
12
bits
|
WEIGHT
1.45
kg
|
NODE // 03 TECHNICAL MATRIX
| Model | AO 3481 |
| Module type | Analog Output Module |
| Output points | 4, commoned-return, DC-coupled |
| Controlled output range | 4–20 mA |
| Output accuracy | <0.25% of full-scale range, from 0°C to 70°C |
| Architecture | TMR |
| Resolution | 12 bits |
| Diagnostic | Forced-switch diagnostic (FSD) |
| External loop power | 24 VDC nominal; 32 VDC maximum; reverse-voltage protected |
| Loop power requirement | 300 Ω at >16 VDC; 500 Ω at >20 VDC; 700 Ω at >24 VDC; 800 Ω at >28 VDC (1 A minimum) |
| Weight | 1.45 kg |
