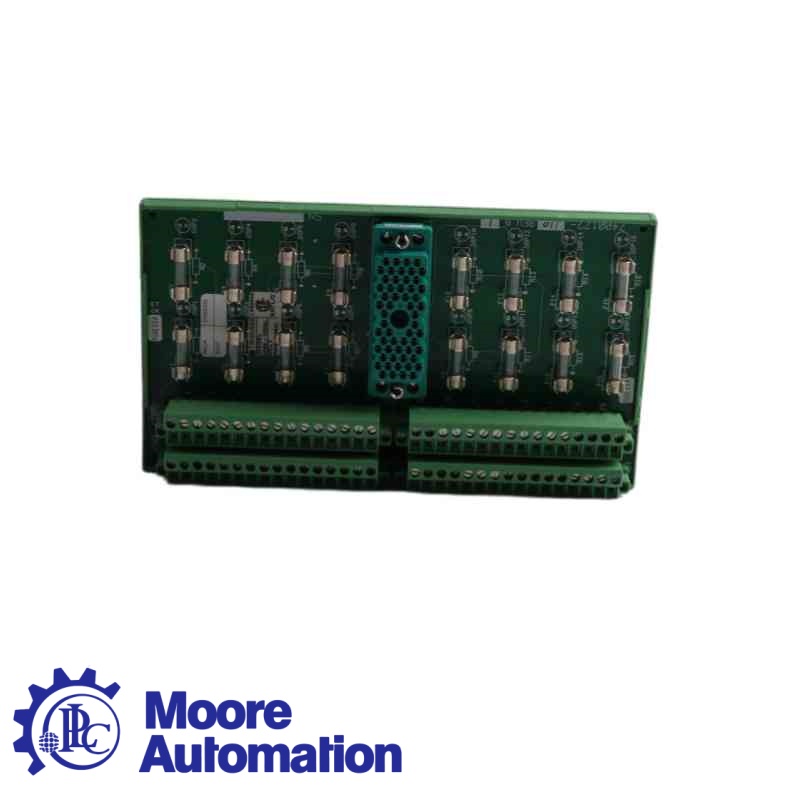

Triconex 9668-110 Relay Output Termination Panel
Warranty: 1 year warranty
Condition : brand new in factory sealed box
Chat online: +86 17359287459 (whatsapp)
Email: sales6@askplc.com
Detail
- Product NameTriconex 9668-110 Relay Output Termination Panel
- Item NO.3737187
- Weight0.5200 kg = 1.1464 lb = 18.3425 oz
- CategoryOthers
- TagTRICONEX, 9668-110, Output Termination Panel
- BrandTriconex
- Creation Time2026-08-13
- The Triconex 9668-110 is a non-commoned, normally open relay output termination panel for 3636R and 3636T modules. It terminates 16 output points and provides separate load and field-power terminals with individual fuse protection for each circuit.
|
If you would like to inquire about prices directly |
|
Email:sales6@askplc.com |
|
Mobile/WhatsApp:+86 17359287459 |
Triconex 9668-110 Relay Output Termination Panel
Product status: 1.New & Original 2.In Stock
Series: Tricon Safety System
Product Description
The Triconex 9668-110 is a non-commoned, normally open relay output termination panel designed for use with Triconex 3636R and 3636T 32-point relay output modules. It provides field wiring connections for 16 output points, with separate power and load terminals and an individual fuse for every circuit.
Two termination panels are required to terminate all 32 outputs of one relay output module. The 9668-110 can also be combined with a 9651-110 basic termination panel when the application requires mixed termination arrangements.
Specifications
|
Product Type |
Relay Output Termination Panel |
|
Termination Configuration |
Non-commoned |
|
Contact Configuration |
Normally open |
|
Number of Supported Points |
16 relay output points |
|
Compatible Modules |
Triconex 3636R and 3636T |
|
Load Terminals |
16 sets of LOAD+ and LOAD− terminals |
|
Field-Power Terminals |
16 sets of PWR+ and PWR− terminals |
|
Circuit Protection |
16 individual fuses |
Application Areas
Emergency shutdown systems
Burner management systems
Fire and gas protection systems
Turbine and compressor protection
Process interlock circuits
Alarm and annunciation circuits
Solenoid and relay control circuits
Oil, gas, chemical and power-generation facilities
Key Features
Independent field circuits
The non-commoned configuration provides separate power and load connections for every relay output.
Individual fuse protection
Each of the 16 output circuits has a dedicated fuse for localized circuit protection.
Organized field wiring
Clearly separated LOAD and PWR terminals simplify installation, inspection and maintenance.
Flexible panel arrangement
Two 9668-110 panels or a combination of 9668-110 and 9651-110 panels can support one 32-point module.
Direct module compatibility
Designed specifically for the normally open outputs of Triconex 3636R and 3636T modules.
