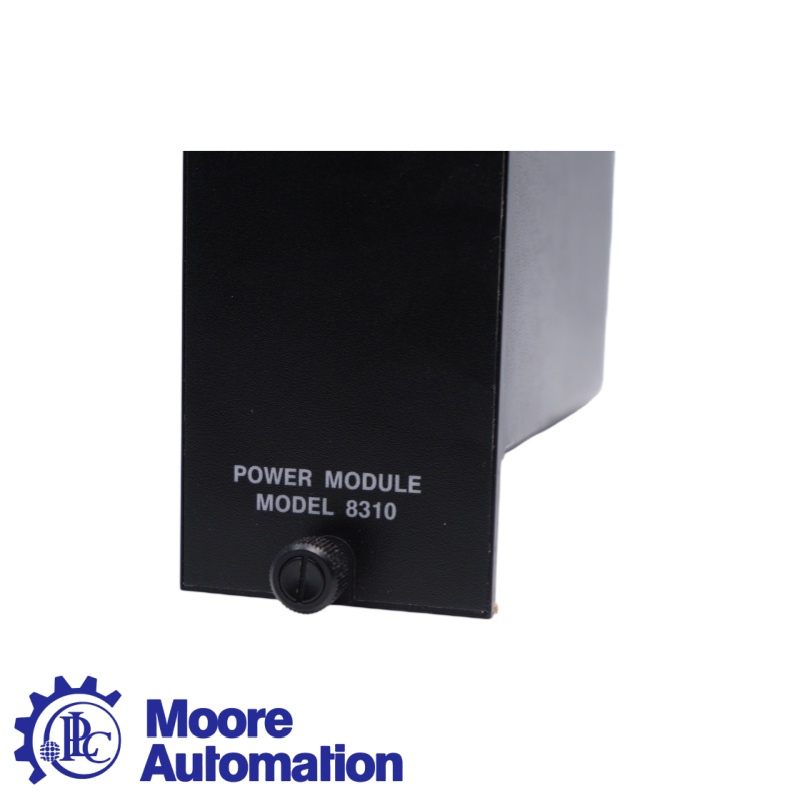

Triconex 8310 Power Module
Warranty: 1 year warranty
Condition : brand new in factory sealed box
Chat online: +86 17359287459 (whatsapp)
Email: sales6@askplc.com
Detail
- Product NameTriconex 8310 Power Module
- Item NO.3736680
- Weight2.8000 kg = 6.1729 lb = 98.7671 oz
- CategoryOthers
- TagTRICONEX, 8310, Power Module
- BrandTriconex
- Creation Time2026-08-12
- Triconex 8310 Power Module is a rack-mounted power supply designed for Triconex safety systems, providing stable operating power to installed control and I/O modules for reliable continuous operation in critical industrial applications.
New & Original | In Stock | Ready to Ship
Email: sales6@askplc.com/WhatsApp: +86 17359287459
|
Triconex 8310 Details |
|
|
The Triconex 8310 is a 175 W power module designed for Tricon main, expansion and remote expansion chassis. It converts incoming 120 VAC/VDC power into regulated 6.5 VDC system power, supporting the stable operation of installed Tricon processor, communication and I/O modules. |
|
|
Product Type |
Power Module |
|
Compatible Chassis |
Main / Expansion / RXM |
|
Nominal Input |
120 VAC/VDC |
|
AC Input Range |
85–140 VAC, 47–63 Hz |
|
DC Input Range |
95–180 VDC |
|
Output Voltage |
6.5 VDC, ±1% |
|
Output Power |
175 W at 60°C |
|
Maximum Output Current |
27 A at 60°C |
|
Input-to-Output Isolation |
Greater than 1,000 VAC or 1,500 VDC |
|
Fuse |
5 A, time-delay |
|
Minimum Hold Time |
20 ms |
|
Status Indicators |
PASS, FAULT, ALARM, TEMP, BATT LOW |
Key Features
Stable system power: Regulated 6.5 VDC output supplies power to modules installed in the Tricon chassis.
Flexible input capability: Accepts both AC and DC input within the specified operating ranges.
Clear diagnostics: Front-panel indicators provide quick identification of power, fault, alarm, temperature and battery conditions.
Redundant configuration: Two power modules can be installed in a chassis, with either module capable of supporting the chassis load.
Online servicing: A power module can be replaced while the second installed module continues supplying the system.
Hardwired alarm support: Alarm contacts provide external notification of power-module warning conditions.
Application Areas
The Triconex 8310
intended for Tricon safety and critical-control installations, including:
|
Emergency shutdown systems |
Fire and gas protection systems |
|
Burner management systems |
Oil and gas production facilities |
|
Chemical processing operations |
Refining and petrochemical plants |
|
Power generation facilities |
Turbomachinery control and protection |
