Triconex 7400213-100 I/O Extender Module
Item NO.: 3737687
Warranty: 1 year warranty
Condition : brand new in factory sealed box
Chat online: +86 17359287459 (whatsapp)
Email: sales6@askplc.com
Detail
- Product NameTriconex 7400213-100 I/O Extender Module
- Item NO.3737687
- Weight0.3000 kg = 0.6614 lb = 10.5822 oz
- CategoryOthers
- TagTRICONEX, 7400213-100, I/O Extender Module, Trident TMR
- BrandTriconex
- Creation Time2026-08-13

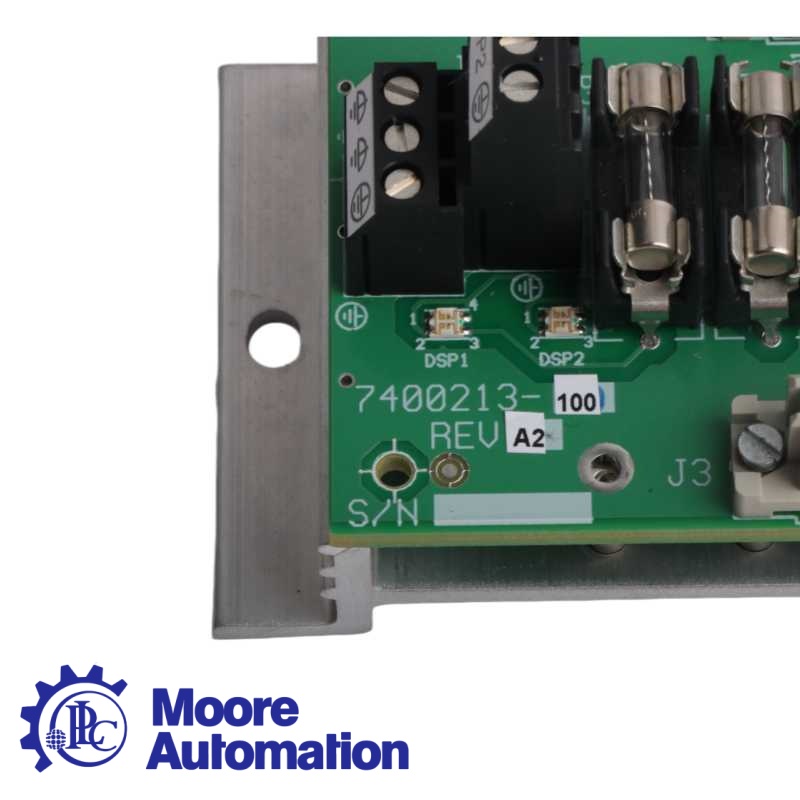

- Triconex 7400213-100 is an I/O extender module for the Trident TMR platform, supporting three-channel I/O bus extension between baseplate columns and configurable logic-power connection.
|
TRICONEX · TRIDENT SYSTEM
7400213-100
I/O Extender Module
|
CORE FUNCTION
TRIPLE-CHANNEL
I/O BUS EXTENSION
Purpose-built for Trident baseplate-column connectivity
|
|
PART NUMBER
7400213-100
|
PLATFORM
Trident
|
TMR PATHS
3 Channels
|
WEIGHT
0.3 kg
|
|
PRODUCT OVERVIEW
Designed for structured Trident expansion
|
The Triconex 7400213-100 is identified as an I/O extender module for the Trident platform. Trident I/O extender modules carry the three independent TMR I/O bus channels between baseplate columns and can provide a logic-power connection according to the controller layout. |
Product Specifications
| Manufacturer | Triconex / Schneider Electric |
| Part Number | 7400213-100 |
| Product Type | I/O Extender Module |
| System Platform | Trident safety system |
| I/O Bus Architecture | Three independent TMR channels |
| Installation Position | Top, bottom, or both ends of a baseplate column |
| Cable Interface | One 9-pin D-connector cable per channel |
| Bus Termination | Required when total I/O bus length exceeds 6 m (20 ft) |
| Maximum I/O Bus Length | 200 m (650 ft), including baseplates, extender modules, and extension cables |
| Weight | 0.3 kg |
Three-Channel Bus Architecture
One cable path for each independent TMR I/O channel
|
CHANNEL A
I/O BUS
|
→ |
CHANNEL B
I/O BUS
|
→ |
CHANNEL C
I/O BUS
|
|
COLUMN LAYOUT
Daisy-Chained Connectivity
The TMR I/O bus continues through each configured baseplate column, beginning with the MP baseplate.
|
POWER DESIGN
Configurable Logic-Power Point
Power connection location depends on whether the baseplate column contains an MP baseplate.
|
I/O Bus Planning Guide
| ≤ 6 m | Standard bus path | Follow the documented Trident column and cable arrangement. |
| > 6 m | Bus termination required | Terminate at the baseplate farthest from the MP. |
| Max. 200 m | Total I/O bus length | Includes baseplates, extender modules, and all extension cables. |
Installation Verification
Confirm the full part number, board revision, baseplate-column position, all three bus paths, cable lengths, termination arrangement, grounding, and logic-power design against the applicable Triconex Trident documentation before installation.
Supply & Service
| One-Year Warranty | New & Original Available | Worldwide Delivery |
| Large In-Stock Inventory | Careful Inspection | Secure Packaging |
|
REQUEST PRODUCT SUPPORT
Triconex 7400213-100
Contact our sales team for availability, revision confirmation, and delivery planning.
|
GET A QUOTE |
