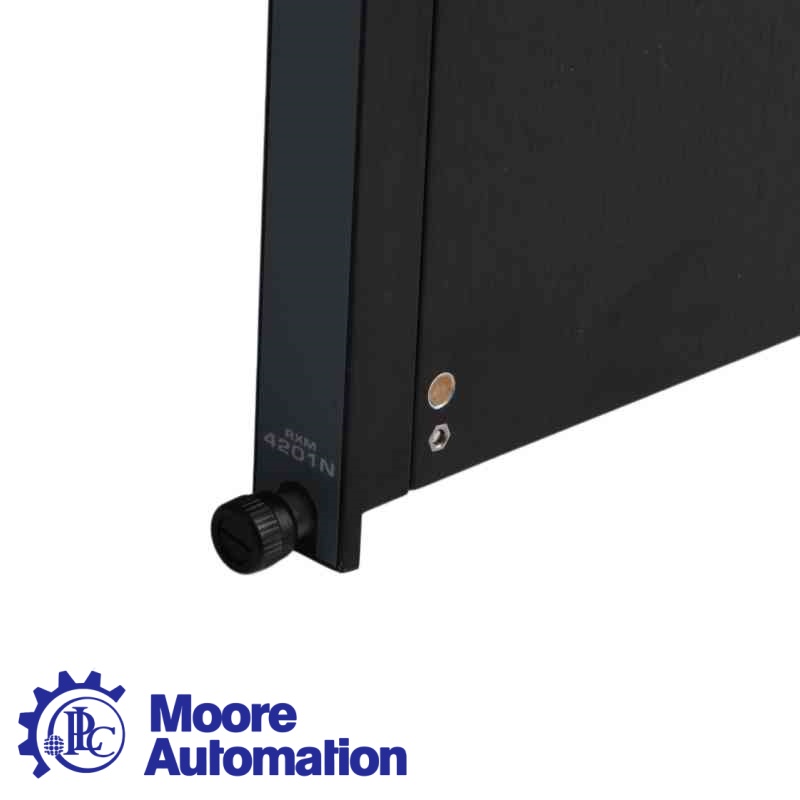

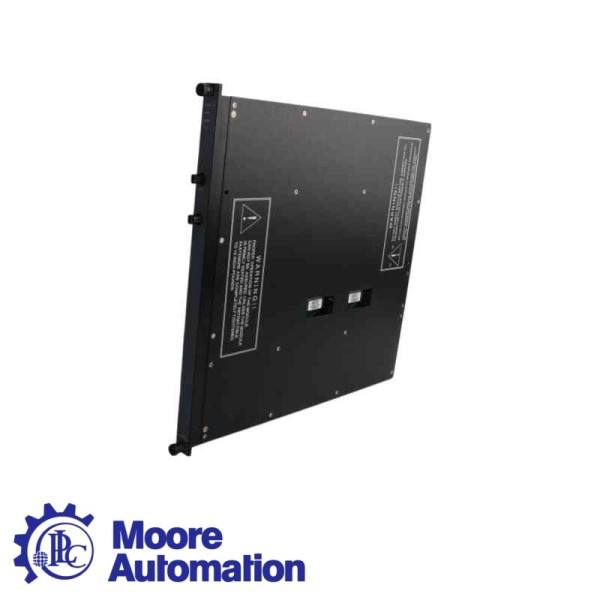

Triconex 4201N Remote Extender Module

Triconex 4201N Remote Extender Module
Product status: 1.New & Original 2.In Stock

Series: Tricon Safety System

Product Description
The Triconex 4201N is a remote-side Remote Extender Module used in distributed Tricon safety systems. Installed in the remote expansion chassis, it communicates with a corresponding 4200N Primary RXM through multimode fiber-optic cables.

A complete TMR connection requires three 4201N modules at the remote end and three 4200N modules at the primary end. Each RXM pair uses separate transmit and receive fibers to extend one channel of the Tricon I/O bus. The fiber connection supports distances up to 1.2 miles（approximately 1.9 km） while providing ground-loop isolation and resistance to electrical interference.

Specifications

Application Areas

Emergency shutdown systems

Fire and gas protection systems

Offshore oil and gas platforms

Refineries and petrochemical complexes

Chemical-processing facilities

Power-generation plants

Pipeline pumping and compressor stations

Tank farms and storage terminals

Remote utility and process units

Large industrial sites with geographically separated equipment

Key Features

Remote-side I/O-bus extension
The 4201N receives and returns Tricon I/O data between the remote expansion chassis and the primary system.

Triplicated communication paths
Three identical RXMs preserve the three independent paths used by the Tricon architecture.

Long-distance operation
Multimode fiber supports remote chassis placement up to 1.2 miles from the main system.

Independent transmit and receive fibers
Each RXM pair uses two separate optical cables for two-way data exchange.
Ground-loop isolation
Optical transmission electrically separates chassis installed in different areas or buildings.
