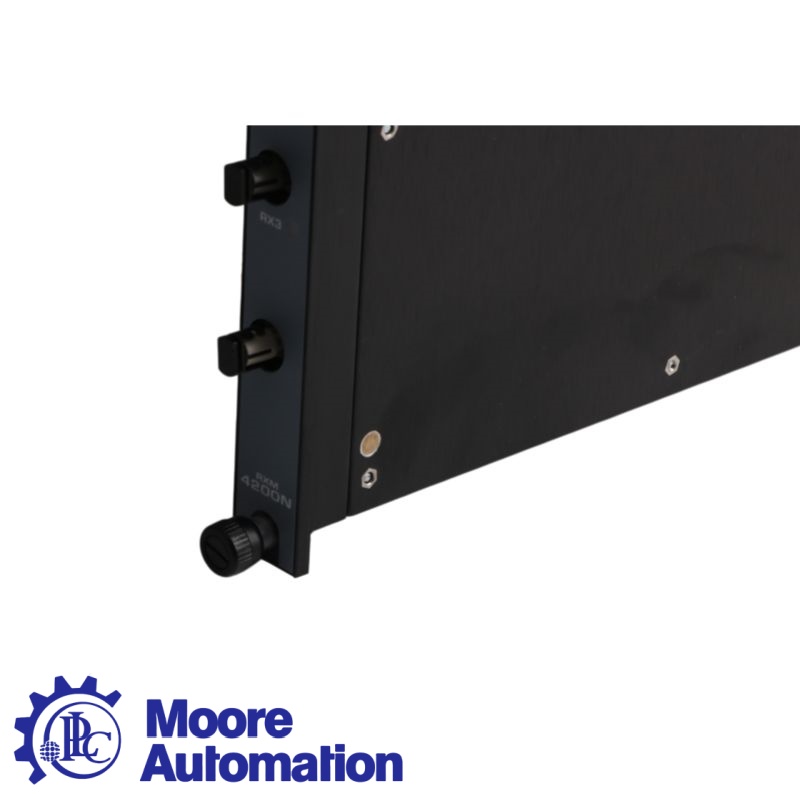

Triconex 4200N Remote Extender Module

Triconex 4200N  Remote Extender Module
Product status: 1.New & Original 2.In Stock

Series: Tricon TMR Safety System

Product Description
The Triconex 4200N is a Primary Remote Extender Module used to connect a Tricon main chassis with remotely located expansion chassis. It extends the triplicated I/O bus through multimode fiber-optic links, allowing remote I/O equipment to be installed up to 1.2 miles from the main chassis.

A complete primary RXM arrangement uses three identical 4200N modules. Each 4200N communicates with a corresponding 4201N Remote RXM through two unidirectional fiber-optic cables—one for transmitting data and one for receiving data.The optical connection provides ground-loop isolation and strong resistance to electrostatic and electromagnetic interference.

Specifications

Application Areas

Oil and gas production facilities

Offshore platforms

Refineries and petrochemical complexes

Chemical-processing plants

Power-generation facilities

Pipeline pumping and compressor stations

Tank farms and storage terminals

Emergency shutdown systems

Fire and gas protection systems

Remote process-unit I/O stations

Key Features

Triplicated remote communication
Three 4200N modules preserve the three separate communication paths used by the Tricon I/O architecture.

Long-distance I/O extension
Multimode fiber enables an expansion chassis to be positioned up to 1.2 miles from the main chassis.

Bidirectional data exchange
Each RXM pair uses separate transmit and receive fibers for communication in both directions.

Electrical isolation
Fiber-optic cabling isolates distant chassis and prevents communication problems caused by ground-potential differences.
EMI immunity
Optical transmission reduces susceptibility to electrostatic and electromagnetic interference in industrial facilities.
