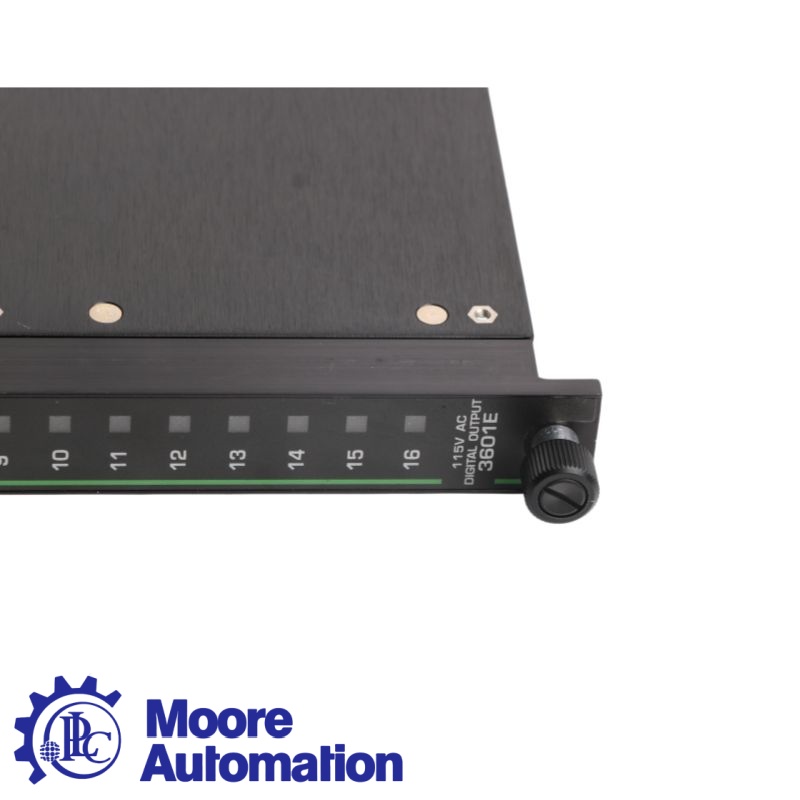

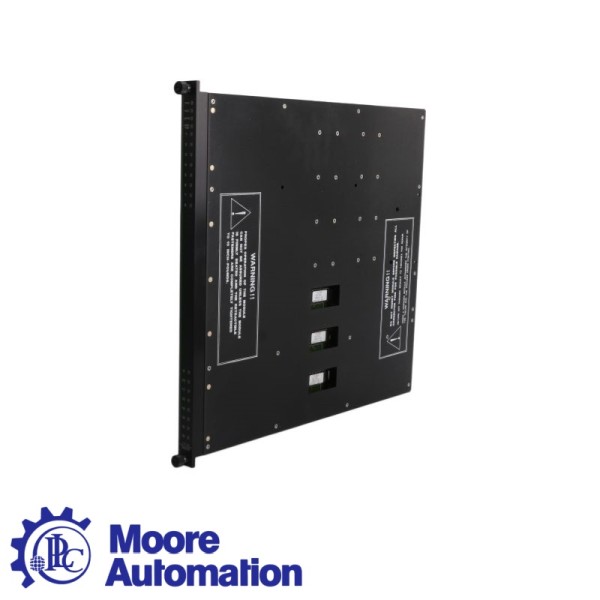

Triconex 3601E Digital Output Module
Warranty: 1 year warranty
Condition : brand new in factory sealed box
Chat online: +86 17359287459 (whatsapp)
Email: sales6@askplc.com
Detail
- Product NameTriconex 3601E Digital Output Module
- Item NO.3736953
- Weight2.8000 kg = 6.1729 lb = 98.7671 oz
- CategoryOthers
- TagTRICONEX, 3601E, Digital Output Module
- BrandTriconex
- Creation Time2026-08-13
- The Triconex 3601E Digital Output Module is a TMR output module with 16 supervised 115 VAC points, providing reliable field-device control and continuous diagnostics for Tricon safety and critical-control systems.
If you would like to inquire about prices directly
Email:sales6@askplc.com
Mobile/WhatsApp:+86 17359287459
you can contact us using the following methods.
Triconex DI 3301 Digital Input Module
Product status: 1.New & Original 2.In Stock
Series: Tricon Safety System
Product Description
The Triconex 3601E is a Triple Modular Redundant digital output module designed to control 16 independent 115 VAC field loads. Its outputs receive commands through three separate channels and use output-voting circuitry to produce a reliable final signal.
Voltage loopback confirms whether the field output matches the commanded state. Continuous internal diagnostics, point-status indicators and load/fuse alarms help maintenance personnel locate abnormal conditions quickly without interrupting normal system supervision.
Specifications
|
Module Type |
TMR Digital Output Module |
|
Nominal Output Voltage |
115 VAC |
|
Output Points |
16, non-commoned |
|
Operating Voltage Range |
80–155 VAC |
|
Frequency Range |
47–63 Hz |
|
Typical Voltage Drop |
Less than 3 V |
|
Maximum Current |
2 A per output |
|
Surge Current |
12 A per cycle |
|
Maximum Load Leakage |
2 mA at 60 Hz |
|
Maximum Chassis Leakage |
4 mA at 60 Hz |
|
Output Protection |
One 3 A fast-acting fuse per output on field termination |
|
Point Isolation |
1,500 VDC |
Application Areas
Emergency shutdown systems
Fire and gas protection systems
Burner management systems
Turbine and compressor control
Oil and gas production facilities
Refineries and petrochemical plants
Key Features
Triple Modular Redundancy
Three control paths and output voting support dependable switching in critical applications.
Sixteen independent outputs
Non-commoned points allow separate field-power wiring and individual load control.
Output verification
Voltage-loopback circuitry checks whether detected field voltage agrees with the commanded output state.
Continuous diagnostics
Internal tests monitor module circuits and report detected faults through the FAULT indicator and chassis alarm.
Load and fuse monitoring
A LOAD/FUSE alarm identifies field-side problems such as loss of load power or an open fuse.
