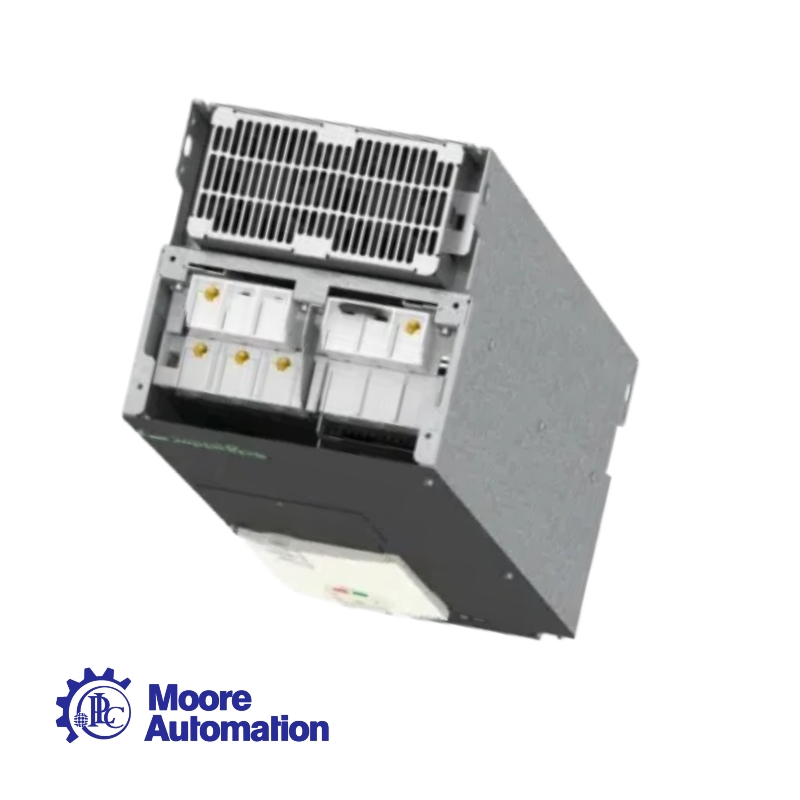

Schneider ATV71HD15N4Z Variable Speed Drive

Specification

Module：ATV71HD15N4Z

Motor power: 15 kW (20 HP)

Supply: 3-phase 380…480 V –15 %…+10 %, 50/60 Hz

Output current (CT/VT): 32 A / 35 A

Over-load: 220 % for 2 s, 150 % for 60 s

Control modes: flux-vector with/without encoder, U/f 2-point & 5-point, ENA for unbalanced

loads

Switching frequency: 1…16 kHz (derating > 4 kHz)

Braking transistor: internal, 100 % torque with external resistor

EMC: integrated class-C3 filter, 25 m motor-cable limit

Harmonics: THDi ≤ 4 % with built-in DC choke

Speed range: 0…500 Hz (U/f), 0…200 Hz (vector)

Speed accuracy: ±0.01 % with encoder, ±0.2 % sensor-less

Torque response: < 20 ms

I/O: 6 DI, 2 AI, 2 relay, 1 AO, 1 STO/SS1 terminal
