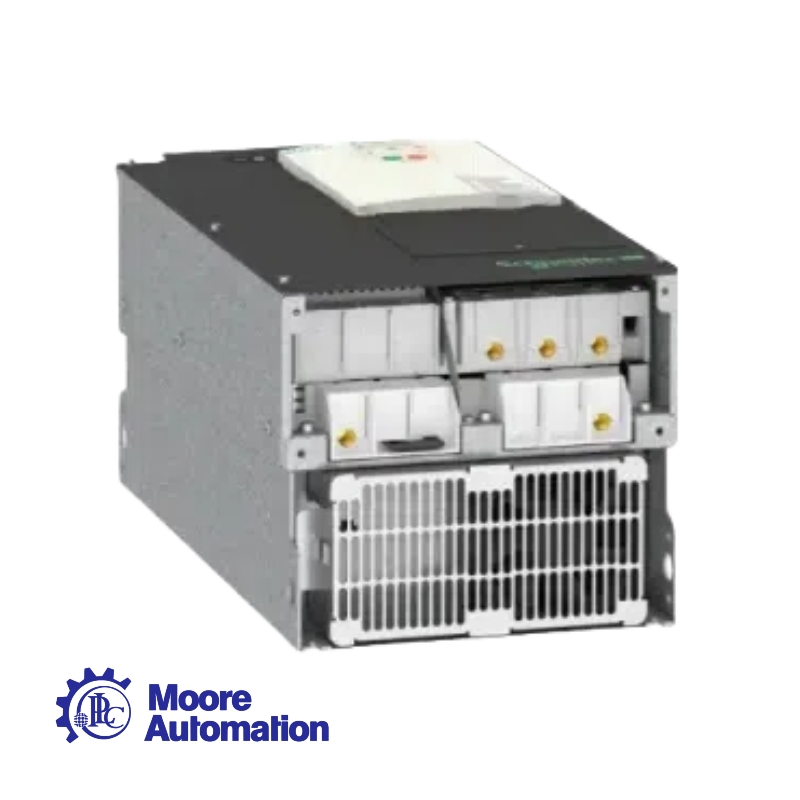

Schneider ATV71HC25N4 Variable Speed Drive

Specification

Module： ATV71HC25N4

Continuous / max power: 220 kW / 250 kW (300 / 350 HP) @ 380–480 V

Nominal output current: 425 A (heavy load) / 480 A (constant torque)

Max short-circuit withstand: 50 kA with recommended fuses

Built-in DC choke for 5 % THDi; external choke optional for 3 %

Switching frequency: 2…8 kHz (derating above 2.5 kHz)

Speed accuracy: ± 0.01 % with encoder, ± 10 % slip compensation without

Over-torque capability: 220 % for 60 s, 160 % continuous (vector)

Brake chopper: external 400 A unit; DC-bus paralleling possible

Control I/O: 6 discrete, 2 analogue in, 2 analogue out, 2 relay, 1 PTC/PT100

Contact info

Whatsapp:+8617359287459     Email:sales6@askplc.com

Our service

Warranty: 12 months.
Lead time: 1-2 working days.
Type of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets: Available on request.

FAQ

Q: When will you ship the goods after I make the payment?

A: Usually, our warehouse arranges shipment within 3-5 working days.

Q: If I buy some different products in your store, can you send them all at once?

A: Yes, we will send all the projects immediately.

Q: What is your packaging?

A: 5-layer corrugated superhard, export specific cardboard box.

Q: What return and refund services do we offer?

A: We offer different warranties for different products. If you receive any defective goods from us, please notify us within 7 days. Returned items must remain in their original condition in order to be eligible for a refund or replacement. We cannot replace it due to human damage.

Q: What are your payment terms?

A: For large orders, we accept Western Union remittance. For small orders, it is recommended that you use Western Union Pay or PayPal.
