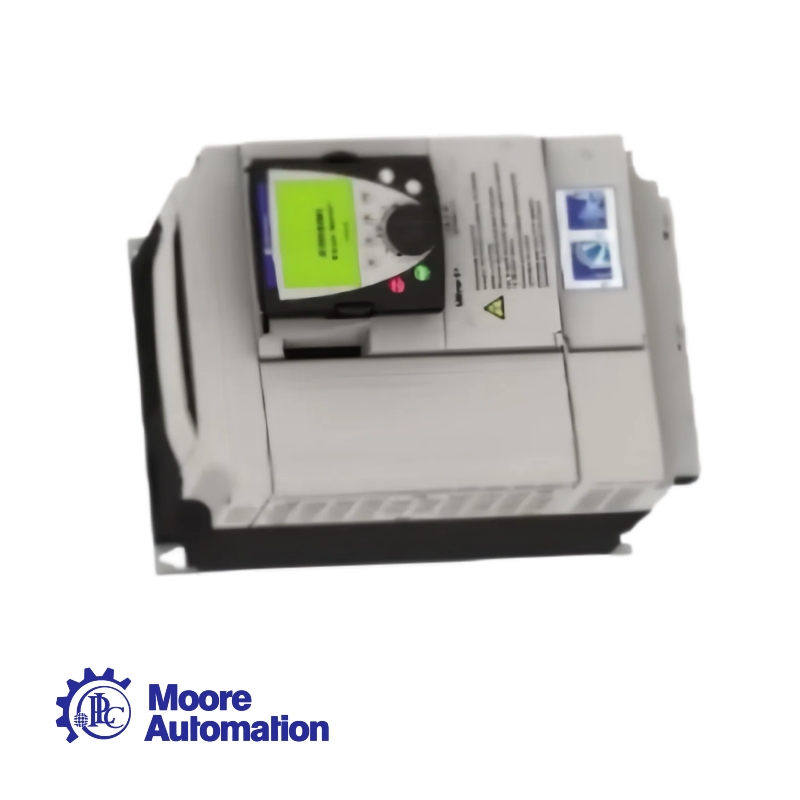

Schneider ATV610D90N4 Motor Drive Solution

Specification

Module：ATV610D90N4

Apparent power: 121.1 kVA @ 415 V (ND) / 107.2 kVA (HD)

Prospective short-circuit: ≤ 50 kA

Output frequency: 0.1…500 Hz

Switching frequency: 2.5 kHz nominal, adjustable 1.8…8 kHz with derating

Over-load capability: 110 % for 60 s (ND) / 150 % for 60 s (HD)

Degree of protection: IP20 (chassis mount)

Operating temperature: -15…+45 °C (up to +60 °C with derating)

Dimensions (H×W×D): 465 × 295 × 300 mm (frame-size 5)

Contact info

Whatsapp:+8617359287459     Email:sales6@askplc.com

Our service

Warranty: 12 months.
Lead time: 1-2 working days.
Type of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets: Available on request.

FAQ

Q: When will you ship the goods after I make the payment?

A: Usually, our warehouse arranges shipment within 3-5 working days.

Q: If I buy some different products in your store, can you send them all at once?

A: Yes, we will send all the projects immediately.

Q: What is your packaging?

A: 5-layer corrugated superhard, export specific cardboard box.

Q: What return and refund services do we offer?

A: We offer different warranties for different products. If you receive any defective goods from us, please notify us within 7 days. Returned items must remain in their original condition in order to be eligible for a refund or replacement. We cannot replace it due to human damage.

Q: What are your payment terms?

A: For large orders, we accept Western Union remittance. For small orders, it is recommended that you use Western Union Pay or PayPal.
