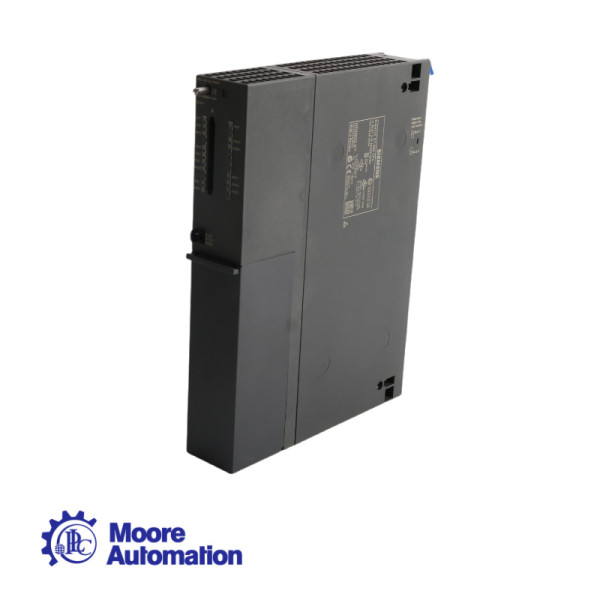

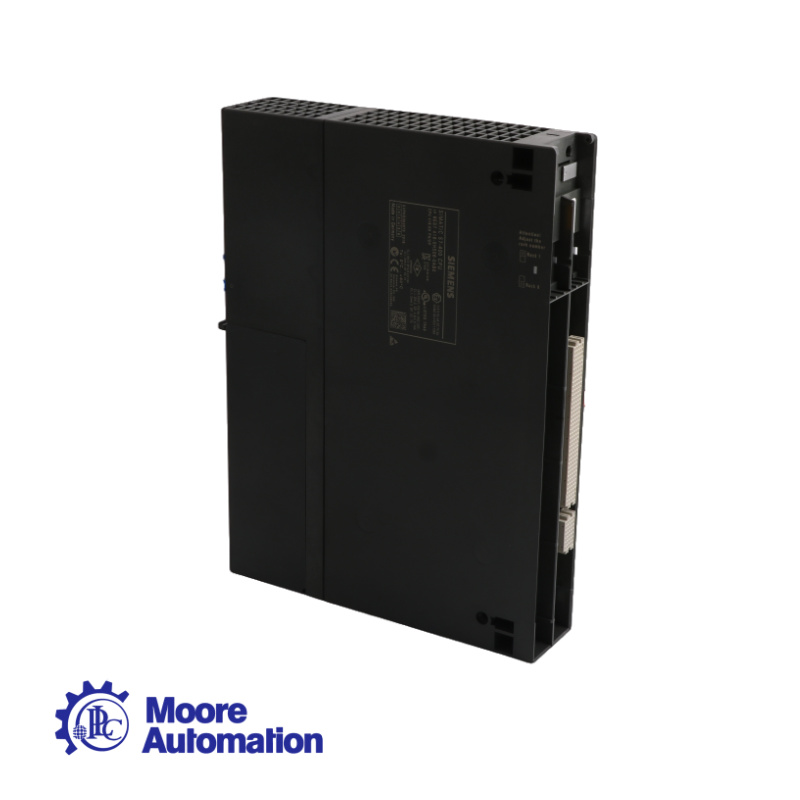

SIEMENS 6ES7416-5HS06-0AB0 REVISION: V6.0.5 CPU 416-5H

6ES7416-5HS06-0AB0 REVISION: V6.0.5 ★★★

Communication Interfaces

• 1 x MPI/DP (RS-485, 12 Mbit/s)

• 1 x PROFIBUS DP (Master, RS-485, 12 Mbit/s)

• 1 x PROFINET interface (Ethernet RJ45)

• 2 x dedicated interfaces for synchronization modules (fiber optic/FO interfaces)

Memory: Work memory (RAM) totaling 16 MB, of which 6 MB is for program and 10 MB is for data.

Scalability: Load memory can be expanded via FLASH memory cards up to a maximum of 64 MB.

Backup function is battery-backed.

Power Supply / Current Consumption

• Backplane bus 5 V DC: Typical 1.6 A, maximum approx. 1.9 A

• From 24 V DC: Maximum approx. 150 mA for DP interface

• 5 V DC at the interface: Maximum ~90 mA per DP interface

Power Consumption / Heat Dissipation: Typical power loss: approximately 7.5 W.

Synchronization/Redundancy: Supports synchronization modules for high-availability/redundant control systems.

CiR (Configuration in RUN) function: Base load synchronization time approximately 100 ms.

Programming Package/Support Software: Engineering configuration using STEP 7 V5.5 SP2 (with HF1) and higher.
