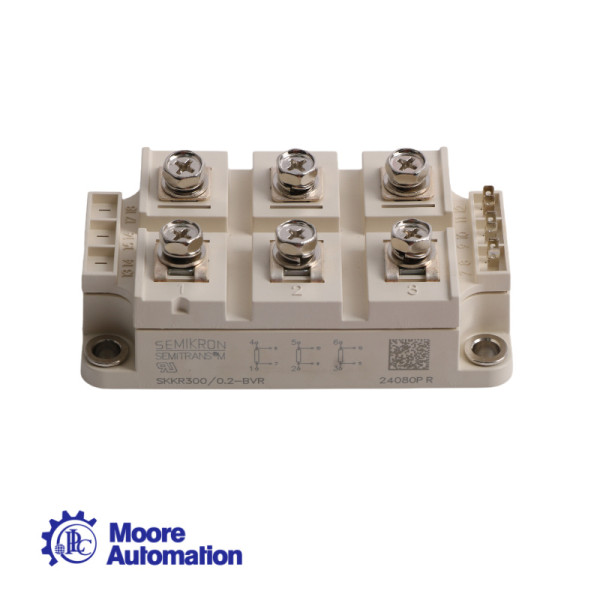

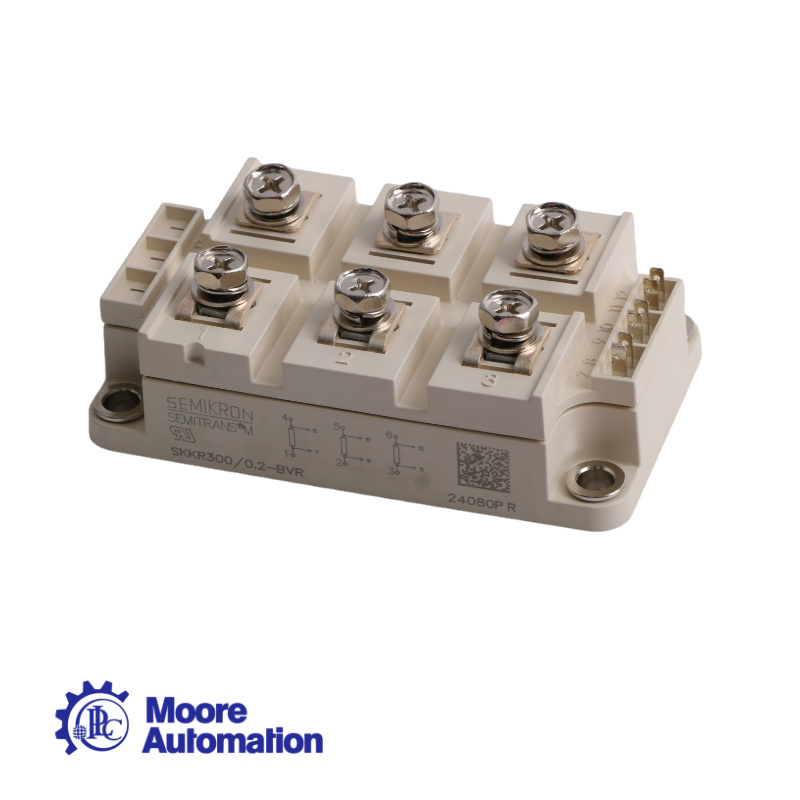

SEMIKRON SKKR300/0.2-BVR Shunt Module

SEMIKRON SKKR300/0.2-BVR Shunt Module

Maximum DC current IDCmax: 200 A (Tshunt = 150 °C; TC = 25(80) °C)
Short-time current ISC (t = 10 µs): 525 A
Resistance R_shunt (tolerance ± 5%): 0.71 mΩ
Temperature coefficient T_cr(shunt): 50 ppm/K
Total power dissipation P_tot per shunt (TC=25(80) °C): 27 W (15 W)
Typical voltage drop V_shunt (at IDC = 300 A; TC = 25-125 °C): 210–216 mV (e.g., terminals 7-8 / 9-10 / 11-12)
Thermal resistance R_th(j-c): 7.0 K/W
Insulation voltage V_iso (AC, 1 min): 2500 V
Storage temperature range T_stg: -40 … +125 °C
