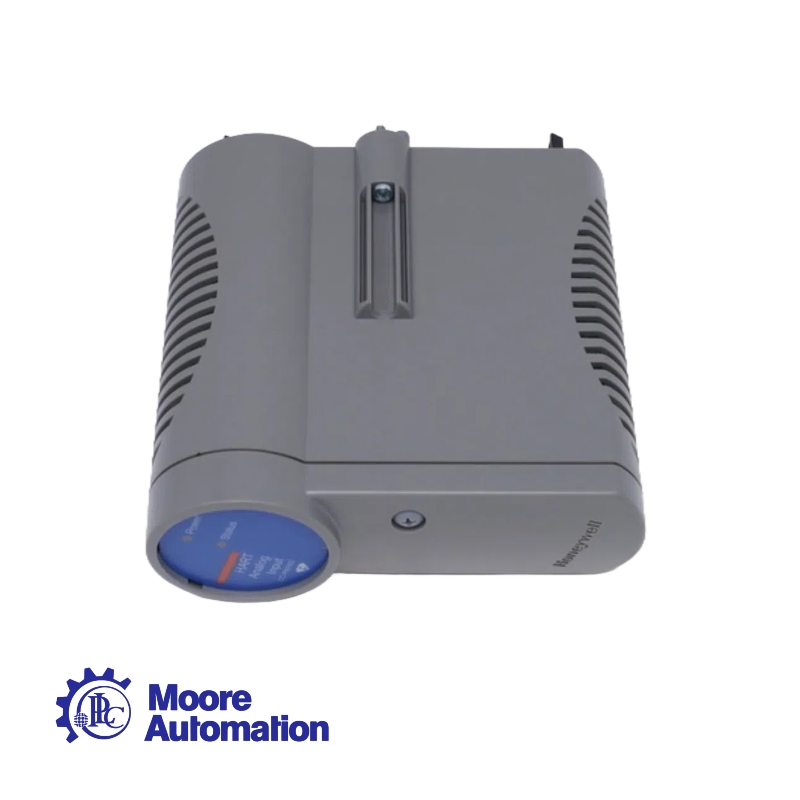

Honeywell CC-PAIH02 Universal HART Analog-In
Warranty: 1 year warranty
Condition : brand new in factory sealed box
Chat online: +86 17359287459 (whatsapp)
Email: sales6@askplc.com
Detail
- Product NameHoneywell CC-PAIH02 Universal HART Analog-In
- Item NO.CC-PAIH02
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2025-10-09
Company overview
Moore Automation puts a worldwide, ready-to-ship inventory of automation components—PLCs, HMIs, drives, sensors, robotics, and more—at your command 24/7. Our intelligent sourcing engine instantly locates the exact part you need from thousands of vetted suppliers across six continents, then routes it through the fastest customs-cleared channel to your dock, whether you’re in Detroit, Dubai, or a remote plant in the Andes.
CC-PAIH02 detail
|
Input channels |
16, isolated channel-to-channel & channel-to-ground |
|
Supported signals |
0–20 mA, 4–20 mA, 0–5 V, 1–5 V, ±5 V, ±10 V, HART 7 |
|
A/D resolution |
24-bit Σ-Δ, 30 Hz update per channel |
|
Accuracy @25 °C |
±0.10 % of reading + 0.02 % of span |
|
Temperature drift |
≤ 0.003 % span/°C |
|
Open-circuit detect |
< 2 s, active on all current ranges |
|
Over-range / burn-out |
User-selectable upscale/downscale, 22 mA max |
|
HART pass-through |
1.2 kHz FSK, burst mode, long-tag, 5-message buffer |
|
Surge withstand |
1 kV IEC 61000-4-5, 42 Ω/0.5 µF coupling |
|
Isolation working voltage |
250 Vrms continuous, 1500 Vrms 1-min test |
|
Power consumption |
4.2 W typical, 5.5 W max from C-Series 24 Vdc bus |
Description:
The CC-PAIH02 is a high-density analog input module for Honeywell Experion® and C300 controllers. It accepts any mix of voltage, current or HART-enabled field devices on a single card, eliminating the need for separate HART multiplexers. 24-bit sigma-delta converters deliver stable measurements for custody-transfer or reactor temperature profiling, while on-board HART pass-through supports remote transmitter configuration without extra wiring.
