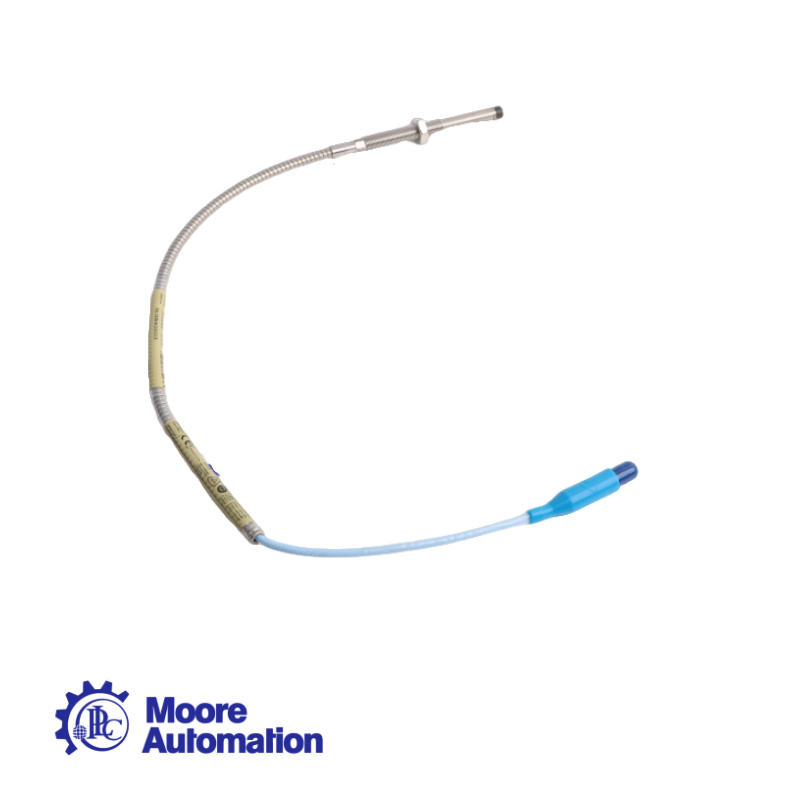

Bently Nevada 330104-00-03-05-02-CN/05 Proximity Probe

330104-00-03-05-02-CN/05 | Proximity Probe >> Bently Nevada

The 3300 XL Series is Bently Nevada's high-performance vibration monitoring solution, primarily designed for measuring shaft displacement, vibration, and speed in rotating machinery (such as turbines, compressors, and pumps).

Model 330104 features an 8 mm probe diameter, an M10 x 1 thread, and a metal jacket to enhance cable resistance to mechanical damage, making it suitable for industrial environments requiring high reliability.

Specifications

Extension Cable Capacitance	69.9 pF/m (21.3 pF/ft) typical	Linear Range	2 mm (80 mils). Linear range begins at approximately 0.25 mm (10 mils) from target and is from 0.25 to 2.3 mm (10 to 90 mils) (approximately –1 to –17 Vdc).
Field Wiring	0.2 to 1.5 mm2 (16 to 24 AWG). Recommend using 3 conductor shielded triad cable and tinned field wiring. Maximum length of 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor. See the frequency response graphs, Figures 10 and 12, for signal rolloff at high frequencies when using longer field wiring lengths.	Recommended Gap Setting for Radial Vibration	-9 Vdc [approximately 1.27 mm (50 mils)]

Unless otherwise noted, the following specifications are for a 3300 XL 8 mm Proximitor Sensor, extension cable and 8 mm probe between +18˚C and +27˚C (+64˚F to +80˚F) at a maximum altitude of 2000 meters, with a -24 Vdc power supply, a 10 kΩ load, an AISI 4140 steel target, and a probe gapped at 1.27 mm (50 mils). Performance characteristics apply to systems that consist solely of 3300 XL 8 mm components. The system accuracy and interchangeability specifications do not apply to transducer systems that are calibrated to any target other than our AISI 4140 steel target.
