ABB AO810V2 3BSE038415R1 Precision Analog
Warranty: 1 year warranty
Condition : brand new in factory sealed box
Chat online: +86 17359287459 (whatsapp)
Email: sales6@askplc.com
Detail

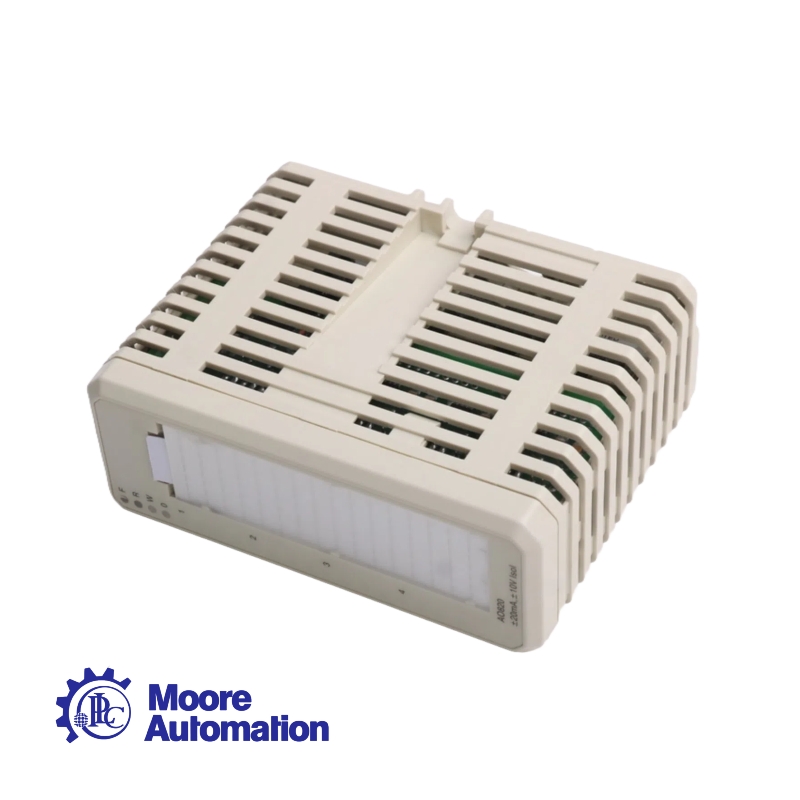

- Product NameABB AO810V2 3BSE038415R1 Precision Analog
- Item NO.AO810V2 3BSE038415R1
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryDCS
- BrandABB
- Creation Time2025-10-09
Our Company
With Moore Automation, the world’s automation inventory is one click away—keeping manufacturers running and downtime at zero. Wherever you operate, we cut losses that could cost millions.
▽▲
|
AO810V2 3BSE038415R1 Details |
|
|
Output ranges |
0 … 20 mA, 4 … 20 mA (software selectable per channel) |
|
Resolution |
14-bit (0.61 µA / LSB) |
|
Accuracy |
≤ ±0.1 % of span @ 25 °C, load 0 … 500 Ω |
|
Temperature drift |
Typ. 30 ppm/°C, max. 60 ppm/°C |
|
Settling time |
≤ 0.35 ms to ±0.1 % (500 Ω load) |
|
Update cycle |
≤ 2 ms (all channels) |
|
Load capability |
0 … 500 Ω (L1+ supply), 250 … 850 Ω (L2+ supply) |
|
Open-circuit detect |
Yes, < 1 mA threshold (channel error flag) |
|
Short-circuit protection |
Protected to ZP (0 V) and to +24 V |
|
Fail-safe (OSP) |
User-defined fallback value on module fault |
|
Isolation |
Group-wise galvanic isolation to Module-bus, 50 V rated |
|
Field cable length |
Max. 600 m (shielded pair) |
|
Power supply |
+24 VDC field, +5 VDC Modulebus (70 mA typ.) |
|
Power dissipation |
2.3 W max. |
The AO810V2 plugs into any S800 I/O station and delivers eight individually configurable 0/4-20 mA loops for valves, actuators or variable-frequency drives.
14-bit resolution, sub-millisecond settling and automatic open-circuit detection make it ideal for high-precision process control.
▽▲
|
